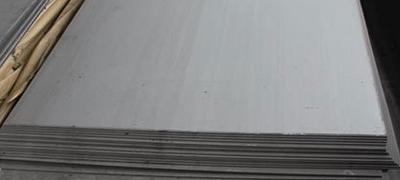

Nickel Alloy 200/201 Sheets And Plates

Nickel Alloy 200 Sheets, ASTM B162 Nickel 201 Plates, Alloy 200,201 Coils, Nickel 2.4066, 2.4068 Sheets, Nickel HR Sheets and Plate Manufacturer, NW 2200, 2201 Sheets, N02201 Plate, Nickel Alloy Industrial Nickel 200/201 Sheets, Plates and Coils Supplier in Mumbai India.

Nickel Alloy 200/201 Sheets And Plates has many features and specifications to offer to the clients and other dealers. The quality of the product is up to mark and is completed according to the international standards. It is the commitment of the industry to check all the products at every stage so that a good product should be delivered. The characteristics are about the mechanical property and it is very wide over a particular range of temperatures. It is also planned in such a manner that the resistance quality is also at its best. However, it is completely rusted or corrosion protected. The product is designed perfectly and all the edges and dimensions are perfectly made.

In terms of commercial, Nickel 200 and Nickel 201 are pure nickel grades that contain up to 99% nickel in their mixture. The 1% or less than 1 percent made of silver, manganese, copper, iron, carbon, and other elements in the least amount.

Nickel 200 and Nickel 201 both have their strength and are used across several multiple industrial sectors. The top-grade quality of nickel means that these grades are highly preventable by reducing chemicals and caustic alkalies and giving excellent electrical and thermal conductivity. The materials are also the hardest metals on the market and also have better magnetic properties.

Nickel Alloy 200/201 Perforated Sheets, Alloy 201 CR Sheets, 200 Nickel #4 Finish Plates, Alloy ASTM B162 200 Plates, 201 Nickel Chequered Plates Stockists, ASTM B162 Nickel 200 Sheets Exporter, ASTM B162 Nickel 200/201 Coils Supplier, Nickel 201 Shim Sheets, Nickel 200 Hot Rolled Plates, Nickel 200/201 Sheets and Plates Manufacturer in India.

Specification of Nickel Alloy 200/ 201 Sheets, Plates, Coils

SpecificationEN, DIN, JIS, ASTM, BS, ASME, AISI, IS
Size Range1 MM To 200 MM Thk In 1000 MM To 3000 MM Width x 2500 MM/ 5000 MM / 10000 MM Length & In Coil Form above as per the customer requirement.
Type2B, CR, MAT, MAT PVC, BA, MIRROR FINISH
FormSheet , Plate , Coils, Farma & Different Shape as per drawing
TEST CERTIFICATESMTC, IBR & Third Party Inspection.



Nickel Alloy 200/201 Sheets, Plates and Coils Mechanical Properties

GradeDensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
Nickel 2008.9 g/cm31446 °C (2635 °F)Psi – 67000 , MPa – 462Psi – 21500 , MPa – 14845 %
Nickel 2018.9 g/cm31446 °C (2635 °F)Psi – 67000 , MPa – 462Psi – 21500 , MPa – 14845 %

Chemical Composition of Nickel 200/201 Sheets and Plates

GradeCMnSiSCuFeNi
Nickel 2000.15 max0.35 max0.35 max0.01 max0.25 max0.40 max99.0 min
Nickel 2010.02 max0.35 max0.35 max0.01 max0.25 max0.40 max99.0 min

200/201 Nickel Sheets and Plates Equivalent Grades

STANDARDUNSWNR.JISEN
Nickel 200N022002.4066NW 2200Ni 99.2
Nickel 201N022012.4068NW 2201LC-Ni 99
