Nickel Alloy 200/201 Buttweld Pipe Fittings

ANSI B16.9 Nickel 201 Buttweld Fittings, Nickel Alloy 200/201 Seamless Pipe Fittings, High Nickel Alloy 200/201 N02200 Seamless Pipe Fittings, Alloy 200 Buttweld Pipe Fittings, Nickel N02201 Welded Pipe Fittings Manufacturer in Mumbai India.

Rythme Alloys is a manufacturer, exporter, and supplier of Nickel Alloy 200/201 Buttweld Pipe Fittings and uses premium quality raw materials and available materials to enhance the product’s ability to provide the best products. We also offer a wide range of custom-made products on customer’s prerequisites.

Nickel 200/201 Pipe Fitting has a higher amount of nickel, up to 99% and the rest of 1% occupied by iron, silver, manganese, etc. Due to the high amount of nickel, these grades are also known as pure nickel grade alloy. As Nickel 200/201 has low-alloy material, they offer several benefits: high efficiency, durability, and toughness, which means they are more valuable than other metals and metals alloys. Both Grades are used across several different industrial sectors and have high demand due to their excessive properties. Nickel 200/201 both grades have exceptional mechanical and physical properties and high thermal conductivity in reducing environments. Nickel 200/201 can be recycled effectively and efficiently and also shows good weldability and fabricability.

Nickel Alloy 200/201 Buttweld Fittings, ASTM B366 Nickel Alloy 200/201 Buttweld Tee Exporter, Nickel N02201 Stub End, Nickel 200 Reducer, Nickel 201 Buttweld Cross, 200 Nickel Pipe Cap, Nickel Alloy 200/201 Buttweld Pipe Elbow Supplier in Mumbai India.

Specification of Nickel Alloy 200/201 Buttweld Pipe Fittings

SpecificationsASTM B366 / ASME SB366
Standard

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Thickness

Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

Bending RadiusR=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
TypeSeamless / Welded / Fabricated
GradeNickel Alloy 200/201 ,UNS (N02200, N02201), DIN (2.4066, 2.4068)
Items

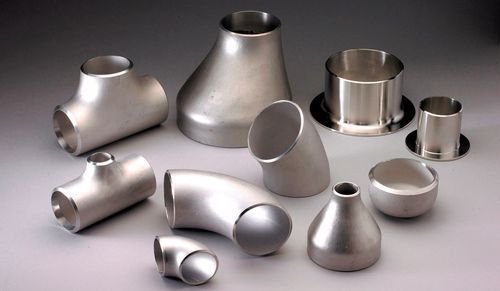

Seamless & Welded Pipe Fittings, 45 Deg & 90 Deg Butt weld Elbow, Pipe Tee, Cross, Reducer, Pipe End Cap, Swage Nipple etc.

Mechanical properties of Nickel Alloy 200/201 Butt weld Fittings

ElementDensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
Nickel 200 / 2018.9 g/cm31446 °C (2635 °F)Psi – 67000 , MPa – 462Psi – 21500 , MPa – 14845 %

Chemical Composition of Nickel Alloy 200/201 Butt weld Fittings

GradeCMnSiSCuFeNi
Nickel 2000.15 max0.35 max0.1 max0.01 max0.25 max0.40 max99.0 min
Nickel 2010.02 max0.35 max0.35 max0.01 max0.25 max0.40 max99.0 min

Equivalent Grades of Nickel Alloy 200/201 Butt weld Fittings

STANDARDWERKSTOFF NR.JISGOSTAFNORUNSBSEN
Nickel 2002.4066NW 2200НП-2N-100MN02200NA 11Ni 99.2
Nickel 2012.4068NW 2201НП-2N02201NA 12LC-Ni 99
