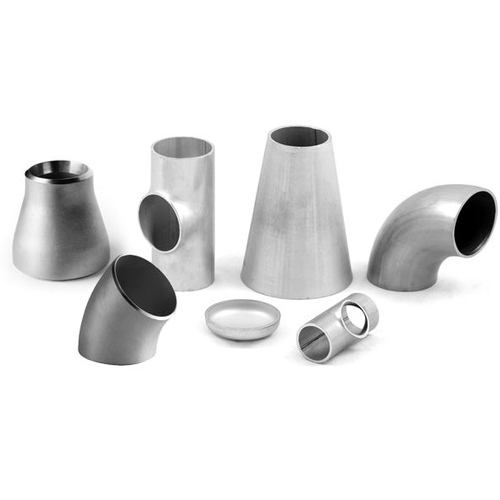

Incoloy 800/800HT/825 Buttweld Fittings
ASME SB366 Incoloy Alloy 800 Pipe Bend Exporter, Incoloy 825 Butt weld Pipe Fittings, ANSI B16.9 Alloy 825 Pipe Cap, UNS N08800 Pipe Elbow, ASTM B366 Incoloy 800HT Buttweld Fittings, UNS N08811 Seamless Fittings, DIN 1.4876 Stub End, Incoloy 800 Pipe Fittings Manufacturer in India.
Wide range of Incoloy 800/800HT/825 Buttweld Fittings are manufactured, exported and supplied by Rythme Alloys. Various types and grades are available such as nickel alloy and alloy steel produced as per international standards.
Incoloy Buttweld Fittings comprises concentric reducer, long radius elbow, and Tees. However, Incoloy Buttweld Fittings are offered as per customer’s requirement in customized thickness and size. Buttweld Fittings are manufactured by using alloys and metals. Incoloy Buttweld fittings are nickel-chromium fittings which are resistant to oxidation even at high temperature. Incoloy 800 has further modified to ensure high-temperature properties. Incoloy 800HT monitors chemical properties for temperature strength and temperature corrosion. Moreover, Incoloy 825 is blessed with good mechanical properties. Incoloy 825 has excellent resistance in all environments. Incoloy Buttweld fittings are developed to deliver exceptional performance meeting the demands. However, MIG or TIG welding applications are rated best for Buttweld Fittings.
UNS N08825 LR Elbow, Incoloy® Alloy 825 Reducer, MSS SP-43 or MSS SP-79 Incoloy 800HT Welded Pipe Fittings, ANSI B16.28 Incoloy 825 Equal Tee Dealer, Alloy 800 Buttweld Elbow, Incoloy ASTM B366 Fitting, Incoloy 800/800HT Reducing Cross Trader, Incoloy 800 Piggable Bend Stockist, DIN 2.4858 SR Elbow Supplier in India.
Specification of Incoloy Alloy Buttweld Fittings
| Specifications | ASTM B366 / ASME SB366 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | Seamless Butt Weld Fittings : 1/2″ – 10″ | Welded Butt Weld Fittings : 1/2″ – 48″ |
| Schedule | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type | Seamless / ERW / Welded / Fabricated |
| Thickness | 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc. |
Mechanical properties of Incoloy 800/800HT/825 Buttweld Fittings
| Inconel 800/800HT | |
|---|---|
| Tensile Strength | Psi – 75,000 , MPa – 520 |
| Yield Strength (0.2%Offset) | Psi – 30,000 , MPa –205 |
| Elongation | 30 % |
| Inconel 825 | |
| Tensile Strength | Psi – 80,000 , MPa – 550 |
| Yield Strength (0.2%Offset) | Psi – 32,000 , MPa –220 |
| Elongation | 30 % |
Chemical Composition of Incoloy 800/800HT/825 Buttweld Fittings
| Incoloy | 800 | 800H | 825 |
|---|---|---|---|
| Ni | 30-35 | 30-35 | 38.0 – 46.0 |
| Fe | 39.5 min | 39.5 min | 22.0 min |
| Cr | 19-23 | 19-23 | 19.5 – 23.5 |
| Cu | 0.75 max | 0.75 max | 1.5 – 3.0 |
| Ti | 0.15-0.60 | 0.15-0.60 | 0.6 – 1.2 |
| Al | 0.15-0.60 | 0.15-0.60 | 0.2 max |
| C | 0.1 max | 0.05-0.1 | 0.05 max |
| Mn | 1.5 max | 1.5 max | 1.0 max |
| S | 0.015 max | 0.015 max | 0.015 max |
| Si | 1.0 max | 1.0 max | 0.5 max |
| Mb | – | – | 2.5 – 3.5 |
Equivalent Grades of Incoloy 800/800HT/825 Buttweld Fittings
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
|---|---|---|---|---|---|---|---|---|
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
