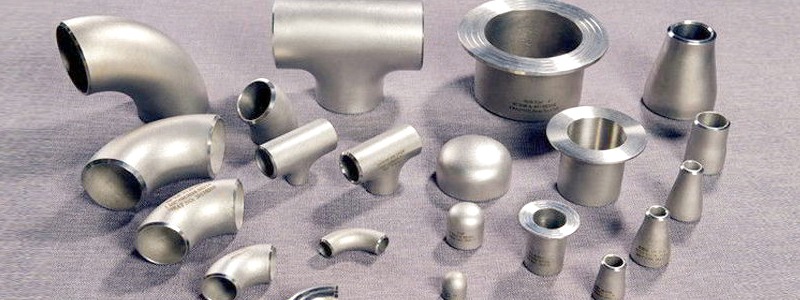

Monel 400/K500 Buttweld Pipe Fittings
Monel Alloy 400/ K500 Pipe Fittings, Alloy 400/500 Buttweld Pipe Fittings, Monel N05500 Welded Pipe Fittings, Monel Seamless Pipe Fittings, ANSI B16.9 Monel K500 Buttweld Fittings, Monel 2.4360 Pipe Fittings Manufacturer in Mumbai India.
Rythme Alloys is a prominent exporter and manufacturer of Monel 400/500 Buttweld Pipe Fittings. We are a traditional manufacturer dedicated to providing high-quality raw materials to ensure customer satisfaction. These fittings are offered in the customized specification in different shapes, sizes, and dimensions. In addition, these grades of fittings are available in several other specifications according to the customer’s requirements.
Monel 400/500 buttweld fitting is a copper-nickel alloy with excellent resistance to pitting and crevice corrosion. Even at high temperatures and pressures, they have high tensile and yielding strength. Monel 400/500 Fittings contains a variation of elements and has a high proportion of nickel up to 63%, copper for about 34%(max), manganese and iron combined up to 5%.
Monel 400/K500 Alloy Buttweld Fittings, Monel Alloy 400/500 Buttweld Pipe Elbow Supplier, Monel 400/500 Reducer, Monel 400/K500 Pipe Cap, ASTM B366 Monel Alloy 400/K500 Buttweld Tee Exporter, Monel 400/500 Buttweld Cross, Monel 2.4375 Pipe Bend in Mumbai India.
Specification of Monel 400 /K500 Buttweld Pipe Fittings
| Specifications | ASTM B366 / ASME SB366 |
| Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type | Seamless / Welded / Fabricated |
| Grade | Monel 400 / K500 UNS (N04400, N05500), DIN (2.4360, 2.4375) |
| Items | Seamless & Welded Pipe Fittings, 45 Deg & 90 Deg Butt weld Elbow, Pipe Tee, Cross, Reducer, Pipe End Cap, Swage Nipple etc. |
Mechanical properties of Monel 400 /K500 Butt weld Fittings
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
Chemical Composition of Monel 400 /K500 Butt weld Fittings
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
Equivalent Grades of Monel 400 /K500 Butt weld Fittings
| STANDARD | WERKSTOFF NR. | EN | UNS | AFNOR | BS | JIS | GOST |
| Monel 400 | 2.4360 | NiCu30Fe | N04400 | NU-30M | NA 13 | NW 4400 | МНЖМц 28-2,5-1,5 |
| Monel K500 | 2.4375 | – | N05500 | – | – | – | – |
