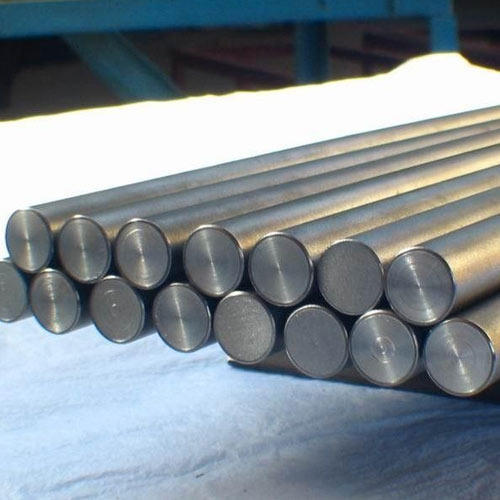

Monel K500 Round Bar

Buy Large Or Small Quantity ASTM B865 UNS N05500 Monel K500 Rod, Monel K500 Welding Rod At Discounted Prices

Rythme Alloys is a manufacturer, exporter, and supplier of Monel K500 Round Bar and uses premium quality raw materials and available materials to enhance the product’s ability to provide the best products. We also offer a wide range of custom-made products on customer’s prerequisites.

MONEL K500 is a age hardened alloy, whose basic composition makeup consists of elements like  Nickel &  Copper. Which combines the corrosion resistance of Alloy 400 with high strength, fatigue resistance, and erosion resistance. MONEL K500 is a nickel-copper alloy, precipitation hardenable through additions of aluminum and titanium. MONEL K500 has excellent corrosion-resistant characteristics. These characteristics are similar to Monel 400.

This means that the ASTM B865 UNS N05500 Hex Bar has enhanced strength, wear resistance, and hardness after precipitation hardening when compared with 400. Before the precipitation hardening of the ASTM B865 UNS N05500 Hex Bar, MONEL K500 can be strengthened further by cold working. As compared to alloy 400, the ASTM B865 N05500 Flat Bar is known to have three times its yield strength and twice its tensile strength.

We Have A Huge Selection Of Monel Alloy K500 Bar, Monel Alloy K500 Square Bars, Alloy K500 Round Bar Stock At Low Prices In Mumbai, India

Alloy 400 Round Bar Specification

SpecificationASTM B 865 / ASME SB 865 / AMS 4676 / QQ N 286, ASTM B865 UNS N04405
GradeMonel K500 – UNS N04405
Monel K500 Bar Stock size (Round)Diameter: 3-~800mm
Monel K500 Flat bar sizeThickness: 2 -100mm
Width: 10 to 500mm
Monel K500 Hex Bar size2-100mm A/F
Monel K500 Angle bar size3mm*20mm*20mm~12mm*100mm*100mm
Monel K500 Square bar size4 to 100mm
Section3.0 to 12.0mm thickness
Monel K500 Channel Bar80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
Monel K500 Billet Size1/2″ to 495mm Diameter
Monel K500 Hollow Bar32mm OD x 16mm ID to 250mm OD x 201mm ID)
Monel K500 Rectangles Size33 x 30mm to 295 x 1066mm
Monel K500 Round Bar Standard Dimensions Diameter / Height:

Finishcentreless ground, Cold (bright) drawn, smooth turned, hot rolled, slit rolled edge, peeled, Rough Turned, Bright, hot rolled annealed, Grinding, Polish, Centreless Ground & Black
SurfaceHot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline, Polished
ToleranceH8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
TechniqueMonel K500 Cold Drawn, Hot Rolled, Forged Round Bar, Cold Rolled, Rod
ConditionHardened & tempered, annealed
ProcessingBar cutting to 650mm



ASTM B865 Monel Bar Condition

H&T
Hardened and tempered.
ANN
Annealed
PH
Precipitation hardened.



Alloy K500 Bar Surface finish

CD
Cold drawn
P
Polished
BD
Bright drawn
SRE
Slit rolled edge
CG
Centreless ground
HF
Hot finished
CF
Cold finished
HRAP
Hot rolled annealed and pickled
P&T
Peeled and turned
RT
Rough turned/peeled
ST
Smooth turned
PR
Peeled and reeled

Monel K500 Round Bar Sizes

Type
SIZES (mm)
SIZES (Inches)
ISO Tolerance
Cold Drawn and Polish
3.00 – 75.00
1/8 – 3.00
h8-h9-h10-h11
Cold Drawn and Ground
10.00 – 75.00
5/6 – 2.50
h8-h9-h10-h11
Peeled and Polished
40.00 – 150.00
1.50 – 6.00
h11, h11-DIN 1013
Peeled and Ground
20.00 – 50.00
3/4 – 2.00
h9-h10-h11

Monel K500 Bar Mechanical Properties

Density
Melting Point
Tensile Strength
Yield Strength (0.2%Offset)
Elongation
8.44 g/cm3
1350 °C (2460 °F)
Psi – 160000 , MPa – 1100
Psi – 115000 , MPa – 790
20 %

Monel K500 Round Bar Chemical Composition

Grade
Ni
Fe
C
Mn
Si
Cu
Al
S
Ti
Monel K500
63.0 min
0.5 – 2
0.25 max
1.5 max
0.5 max
27.0 – 33.0
2.3 – 3.15
0.010 max
0.35 – 0.85

AMS 4676 Monel K500 Bar Equivalent Grades

STANDARD
WERKSTOFF NR.
UNS
Monel K500
2.4375
N05500
