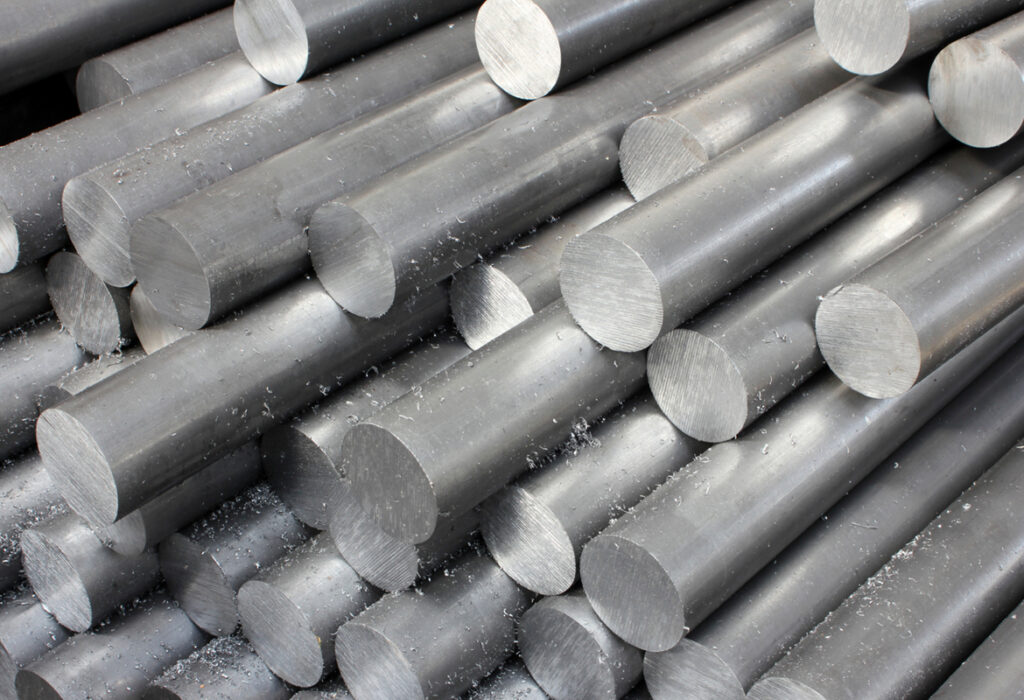

Hastelloy C22 Round Bar
Trusted ASTM B574 UNS N06022 Round Bar Suppliers In India, Hastelloy C22 Round Bar manufacturer in India.
Rythme Alloys is a manufacturer, exporter, and supplier of Hastelloy C22 Round Bar and uses premium quality raw materials and available materials to enhance the product’s ability to provide the best products. We also offer a wide range of custom-made products on customer’s prerequisites.
An austenitic microstructured superalloy, Hastelloy C22 is regarded as a very versatile metal for several reasons. Firstly, the Hastelloy C22 Round Bar has excellent resistance to various forms of corrosion, including resistance to both crevice corrosion and pitting. Secondly, the alloy has exceptional resistance to SCC or stress corrosion cracking, which is why the ASTM B574 UNS N06022 Bar is ideal for use in flue gas desulfurization plants.
Because the alloy exhibits outstanding resistance in media that contains both reductive and oxidative compounds, the C22 Hastelloy Square Bar is regarded as a great fit for chemical processing industries, particularly in those factories that have fluctuations or upset conditions.
Hastelloy C22 Round Bar Specification
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|
| Round bar size | Diameter: 3-~800mm |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Dimensions | Diameter / Height: |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Stainless Steel Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
| Processing | Bar cutting to 650mm |
Hastelloy C22 Round Bar Condition
H&T | Hardened and tempered. |
ANN | Annealed |
PH | Precipitation hardened. |
Hastelloy C22 Round Bar Surface finish
CD | Cold drawn | P | Polished |
BD | Bright drawn | SRE | Slit rolled edge |
CG | Centreless ground | HF | Hot finished |
CF | Cold finished | HRAP | Hot rolled annealed and pickled |
P&T | Peeled and turned | RT | Rough turned/peeled |
ST | Smooth turned | PR | Peeled and reeled |
Hastelloy C22 Round Bar Sizes
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
Cold Drawn and Polish | 3.00 – 75.00 | 1/8 – 3.00 | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 – 75.00 | 5/6 – 2.50 | h8-h9-h10-h11 |
Peeled and Polished | 40.00 – 150.00 | 1.50 – 6.00 | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 – 50.00 | 3/4 – 2.00 | h9-h10-h11 |
ASTM B574 Hastelloy C22 Round Bar Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
Nickel Alloy C22 Round Bar Chemical Composition
| Grade | Ni | C | Cr | Co | Fe | Mn | Mo | P | Si | S | W | V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hastelloy C22 | Bal | 0.010 max | 20 – 22.5 | 2.5 max | 2 – 6 | 0.50 max | 12.5 – 14.5 | 0.02 max | 0.08 max | 0.02 max | 2.5 – 3.5 | 0.35 max |
Alloy C22 Round Bar Equivalent
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
|---|---|---|---|---|
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | NiCr21Mo14W |
