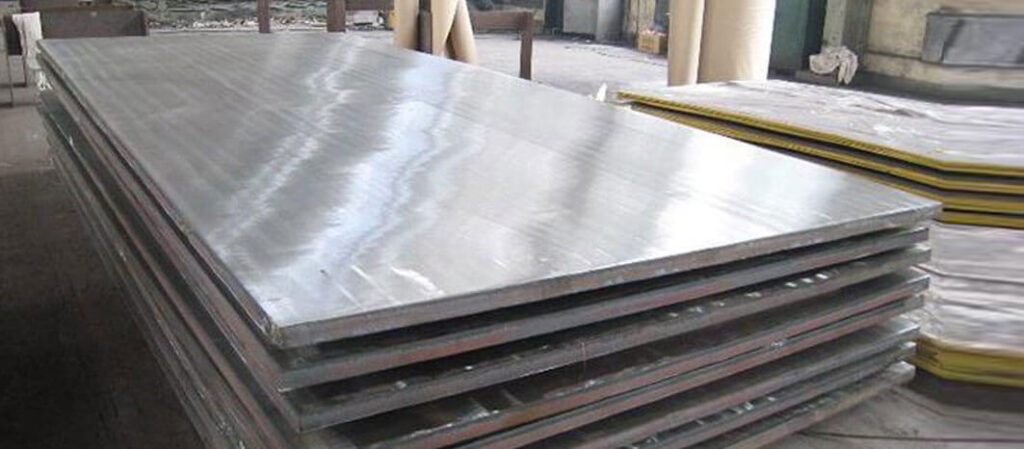

Hastelloy C22/C276 Sheets, Plates and Coils
Hastelloy® Alloy C22/C276 Perforated Sheets, C22 Hastelloy #4 Finish Plates, C276 Hastelloy Chequered Plates Stockists, Alloy ASTM B575 C22 Plates, Hastelloy C22 Hot Rolled Plates, ASTM B575 Hastelloy C22/C276 Coils Supplier, ASTM B575 Hastelloy C22 Sheets Exporter, Hastelloy C276 Shim Sheets, Alloy C276 CR Sheets, Hastelloy C22/C276 Sheets and Plates Manufacturer in India.
Hastelloy C22/C276 that is used in the manufacture of sheets and plates is an austenitic nickel-chromium-molybdenum-tungsten alloy which is versatile and is resistant to crevice corrosion, stress corrosion cracking, resistant to pitting, etc. Hastelloy C22/C276 Sheets, Plates and Coils has high chromium content that offers fantastic resistance to oxidation, whereas the molybdenum present in it provides good resistance to reduction. Hastelloy like other nickel alloys has properties like amazing weldability that can be easily fabricated into various industrial components. This alloy can be incorporated into different forms ranging from plates, strips, sheets, bars, pipes, tubes, billets, covered electrodes, etc. This material provides excellent resistance to localized corrosion, metallurgic stability, does not sensitize during heating or welding.
Hastelloy C22/C276 Sheets & Plates are constructed by our company following international and national standards. They are used widely in various applications and industries including chemical industry, Industries using fats, Fertilizer industry, cement industries, shipbuilders, Sugar mills and distilleries, Paper industries, Designing plants, steel plants, solid plant contraption, mechanical and general building purposes.
Alloy DIN 2.4819 Sheets Dealer, Hastelloy Alloy C276 2B Finish Plates, ASTM B575 Hastelloy C22 Cold Rolled Sheets, Hastelloy UNS N06022 Shim Sheets, C22/C276 Hastelloy Chequered Plates Stockists, Hastelloy C22 Hot Rolled Plates, Hastelloy C22 #8 Mirror Finish Plates, DIN 2.4602 Plates, UNS N10276 Strips, ASME SB575 Hastelloy C276 Sheets and Plates Supplier in India.
Specification of Hastelloy C22/C276 Sheets Plates and Coils
Specification | EN, DIN, JIS, ASTM, BS, ASME, AISI, IS |
Size Range | 1 MM To 200 MM Thk In 1000 MM To 3000 MM Width x 2500 MM/ 5000 MM / 10000 MM Length & In Coil Form above as per the customer requirement. |
Type | 2B, CR, MAT, MAT PVC, BA, MIRROR FINISH |
Form | Sheet , Plate , Coils, Farma & Different Shape as per drawing |
TEST CERTIFICATES | MTC, IBR & Third Party Inspection. |
---|
Mechanical Properties Of Hastelloy C22/C276 Sheets and Plates
Grade | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
---|---|---|---|---|
C22 | 115 | 55 | 60 | 89 |
C276 | 110 | 52.6 | 62 | – |
Chemical Composition of Hastelloy C22/C276 Sheets and Plates
Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
---|---|---|---|---|---|---|---|---|---|---|
Hastelloy C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 max | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
Hastelloy C276 | 0.01 max | 1.0 max | 0.08 max | 2.50 max | Balance | 14.5-16.5 | 4-7 | 15-17 | 0.04 max | 0.04 max |
C22/C276 Hastelloy Sheets and Plates Equivalent Grades
STANDARD | UNS | WNR. | JIS | EN |
---|---|---|---|---|
Hastelloy C22 | N06022 | 2.4602 | NW 6022 | NiCr21Mo14W |
Hastelloy C276 | N10276 | 2.4819 | NW 0276 | NiMo16Cr15W |
