Monel 400/K500 Fasteners
ASME SB164 Monel Alloy 400 Bolts Exporter, DIN 2.4375 Screws, Alloy K-500 Washers, Monel 400 Fasteners, Alloy K500 Spring Washers, UNS N05500 Stud Bolt, Monel 400 Anchor Bolts, UNS N04400 Nuts, ASTM B164 Monel Alloy K500 Fasteners, Monel Fasteners Manufacturer in India.

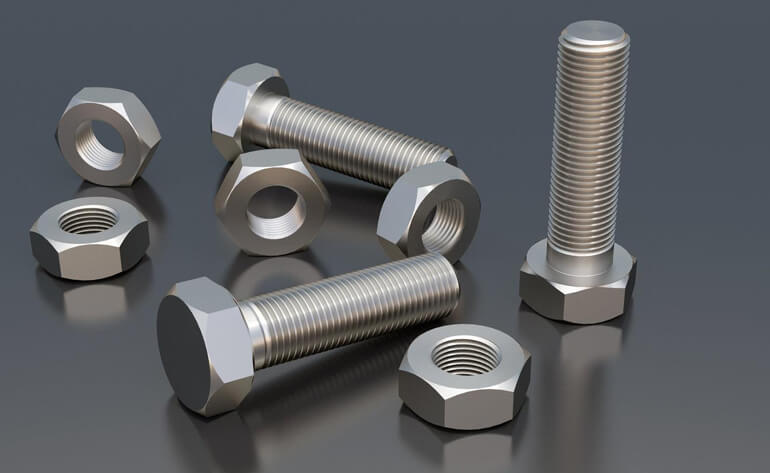

Monel 400/K500 Fasteners is offered in different sizes and shapes according to the demand in the market by Rythme Alloys. We are the most renowned manufacturer and supplier of Monel 400 Fasteners. We maintain the quantity by doing proper testing and p-packaging also for the prevention of any kind of damage.
The Monel 400/K500 Fastener is an alloy of copper and nickel which has good corrosion resistance and high strength. Monel K500 Fasteners has good resistance to seawater, hydraulic acid, and also has high strength and toughness. The most extraordinary quality of this alloy is exceptional toughness and resistance. They are particularizing with DIN, ASTM, SAE, ASME, and there are some other factors also which makes this alloy trustworthy for the use. Because of all these features they are non-magnetic to temperatures up to -150 degrees Celsius and have low permeability.
Monel 400 Hex Nuts Stockist, DIN 2.4360 Socket Head Cap Screws Trader, Monel Heavy Hex Nuts, ASTM B164 Monel Flat Washer, Monel® Alloy 400 Threaded Stud Bolts Dealer, Monel K-500 Lock Washer, Monel K500 Hex Head Bolt Supplier in India.
Monel Alloy 400/K500 Specification
| Specification | EN, DIN, JIS, ASTM, BS, ASME, AISI, IS |
| Size Range | M5 to M 1000 as per the requirement |
| Length | 3 mm to 200 mm as per the requirement |
| Type | Bolts, Nuts, Screws, Studs, Screw, Hex Set Screw, Socket Screw, Sockets,Hexagon Nut as per the requirement |
| TEST CERTIFICATES | MTC, IBR & Third Party Inspection. |
|---|
Monel 400/K500 Fasteners Mechanical Properties
| Grade | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
|---|---|---|---|---|
| 400 | 75 to 90 | 25 to 50 | 60 to 35 | 60 to 80 |
| K500 | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15,000 , MPa – 790 | 20 % | – |
Monel 400/K500 Fasteners Chemical Composition
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | Ti | S |
|---|---|---|---|---|---|---|---|---|---|
| Monel 400 | 63.0- 70.00 max | 2.50 max | 0.3 max | 2.00 max | 0.50 max | Remainder | – | – | 0.024 max |
| Monel K500 | 63.0 min | 05 – 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 – 33.0 | 2.3 – 3.15 | 0.35 – 0.85 | 0.010 max |
400/K500 Monel ASTM B164 Fasteners Equivalent Grades
| STANDARD | UNS | WNR. | EN | JIS | GOST | AFNOR | BS |
|---|---|---|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 | NiCu30Fe | NW 4400 | МНЖМц 28-2,5-1,5 | NU-30M | NA 13 |
| Monel K500 | N05500 | 2.4375 | – | – | – | – | – |
Physical Properties of Monel 400 Fasteners
| Density@ Room Temp | 0.318 lb/in3 |
|---|---|
| Elastic Modulus @ 70ºF (tension) | 26.0 x 106psi |
| Specific Heat @ 70°F | 0.102 Btu/lb/°F |
| Melting Point | 2370°F to 2460°F |
| Thermal Conductivity @ 70°F | 151 Btu • in/h/ft 2 /°F |
| Electrical Resistivity @ 70°F | 0.511 μ Ω • m |
Physical Properties of Monel K500 Fasteners
| Density (Kg.m-1) | 84.3 |
|---|---|
| Magnetic Permeability (20°C) | <1.005 |
| Curie Temperature (°C) | -90 |
| Young’s Modulus (N/mm2) | 179 x 103 |
| Specific Heat, 20°C (J.Kg-1.°K-1) | 418 |
| Specific Electrical Resistance, 20°C (?O.m) | 0.62 |
| Thermal conductivity,20°C (W.m-1.°K-1) | 17.5 |
| Mean coefficient of thermal expansion, 20-100°C (°K-1) | 13.4 x 10-6 |
Fasteners Price List
- Super Duplex Steel Fasteners : US $0.5-1000 / Piece (FOB Price).
- Hastelloy Fasteners : US $300-500 / Ton (FOB Price).
- SMO 254 Fasteners : US $1-900 / Piece (FOB Price).
- Aluminum Fasteners : US $0.5-1000 / Piece (FOB Price).
- Nickel Alloy Fasteners : US $1-300 / Piece (FOB Price).
