Inconel 600/601/625/718 Fasteners
Inconel 600 Fasteners, ASTM B166 Inconel 601 Fasteners, UNS N06625 Nuts, ASME SB166 Inconel Alloy 625 Bolts Exporter, DIN 2.4816 Screws, UNS N07718 Stud Bolt, Alloy 718 Washers, Inconel 600/ 601 Anchor Bolts, Alloy 625 Spring Washers, Inconel Fasteners Manufacturer in India.

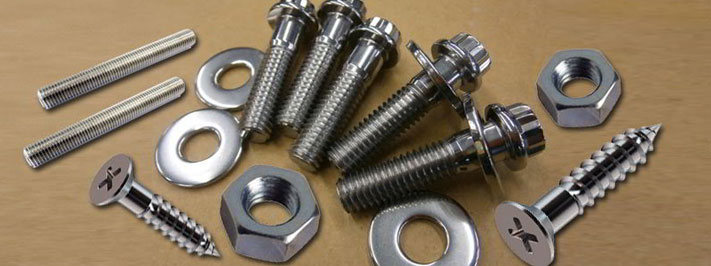

Inconel 600/601/625/718 Fasteners generally consist of screws, bolts, nuts and rivets. The Name Bolts and screws haven’t been given to these fasteners just because of their specifications. It’s been given to them because of their applications. Therefore, the same fastener can be called a bolt or a screw, depending on its usage on a certain machine or equipment. If we talk about the general definitions, Bolts are termed as headed fasteners consisting of external threads that gather a challenging, consistent thread requirement to get fitted with a non-tapered nut. On the other hand, Screws are headed; externally-threaded fasteners that don’t get fitted with a non-tapered nut and are usually get fitted into the material they generally hold.
These Inconel 600/601/625/718 Fasteners are preferred for usage in case of elevated temperatures. Its high nickel content and combination with its chromium provides several benefits. These are known to showcase poor resistance when these come in contact with strong oxidizing solutions like hot and concentrated nitric acid. The presence of high chromium content increases its oxidation resistance considerably.
Inconel 600 Hex Nuts Stockist, Inconel 601 Hex Head Bolt, UNS N06600 / N06601 Flat Washer, Alloy 625 Fasteners, Inconel 718 Fasteners, DIN 2.4856 Socket Head Cap Screws Trader, Inconel® Alloy 600 Threaded Stud Bolts Dealer, Inconel 625 Lock Washer, Alloy 718 Heavy Hex Nuts Supplier in India.
Inconel Alloy Fasteners Specification
| Specification | EN, DIN, JIS, ASTM, BS, ASME, AISI, IS |
| Size Range | M5 to M 1000 as per the requirement |
| Length | 3 mm to 200 mm as per the requirement |
| Type | Bolts, Nuts, Screws, Studs, Screw, Hex Set Screw, Socket Screw, Sockets,Hexagon Nut as per the requirement |
| TEST CERTIFICATES | MTC, IBR & Third Party Inspection. |
|---|
Inconel 600/601/625/718 Fasteners Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Chemical Composition of Inconel Industrial Fasteners
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
|---|---|---|---|---|---|---|---|---|
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
600/601/625/718 Inconel ASTM B166 Fasteners Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Inconel 718 | 2.4668 | N07718 | – | – | – | – | – |
Fasteners Price List
- Super Duplex Steel Fasteners : US $0.5-1000 / Piece (FOB Price).
- Hastelloy Fasteners : US $300-500 / Ton (FOB Price).
- SMO 254 Fasteners : US $1-900 / Piece (FOB Price).
- Aluminum Fasteners : US $0.5-1000 / Piece (FOB Price).
- Nickel Alloy Fasteners : US $1-300 / Piece (FOB Price).
