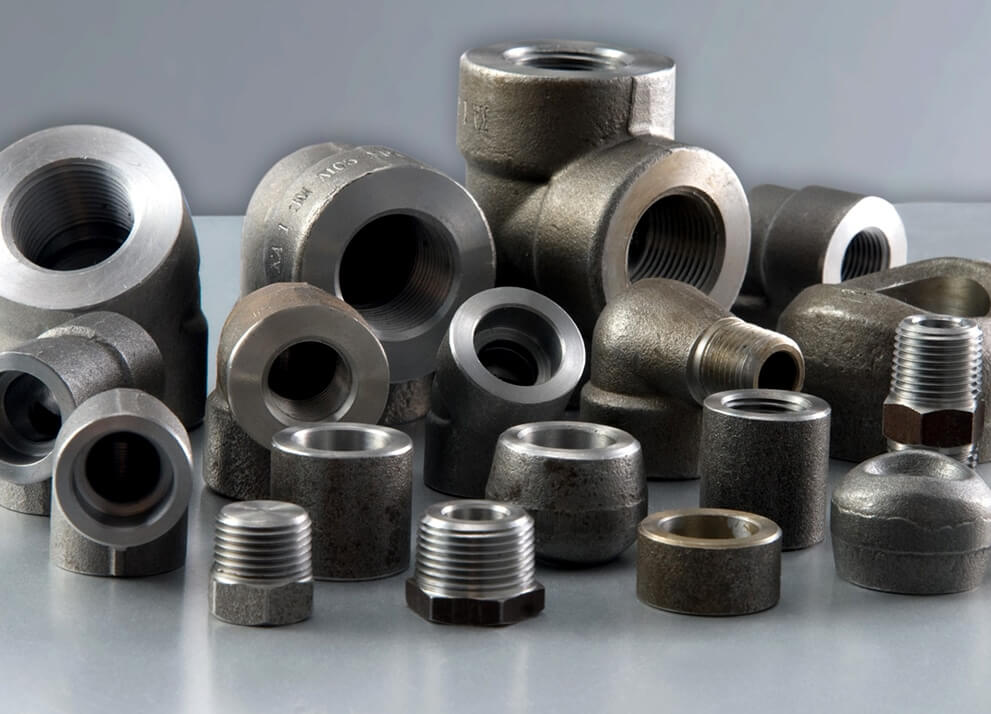

Nickel Alloy 200/201 Forged Fittings
Nickel 200 Forged Fittings, 200/201 Nickel Alloy Forged Fittings Manufacturer in India, Nickel 201 Forged Fittings, ASTM B564 Nickel Alloy 200/201 Threaded Fittings, ASTM B564 Nickel 200 Socket Weld Fittings Supplier
Rythme Alloys is manufacturing and supplying the Nickel 200/201 Forged Fittings for a number of years. They have made a patent of the restricted best quality which matches both the national and international markets. They provide the product according to their client’s needs as per the market demand.
Nickel as an alloy or as an elemental form has made many desirable contributions to society and is always ready to supply more materials with the increase in demand in the future. Nickel 201 Forged Fittings is a highly flexible substance that converts into alloy with most metals which makes it suitable for most industries. Nickel 200 Forged Fittings is a basic element in the nickel alloy. It is used in different types of applications because of its high flexibility and excellent corrosion and heat resistance. This element is highly used in nuclear and energy power plants
Nickel Alloy DIN 2.4066 Plug Dealer, UNS N02200 Socket Weld 90 deg Elbow Trader, Nickel UNS N02201 Hex Bushing, DIN 2.4068 Forged Pipe Fittings, ASTM SB564 Alloy 200 High Pressure Forged Pipe Fittings, 201 Nickel Socket Weld Union Stockists, ASME SB564 Alloy 200/201 Forged Fittings Supplier in India.
Nickel 200/201 Forged Fittings Specification
| 200 Forged Fittings Specifications | ASTM B564/ ASME SB564 |
|---|---|
| 201 Alloy Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Nickel 200 Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Nickel 200 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM B564 200 Nickel Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Nickel 201 Forged Fittings Thread | NPT, BSPT, BSPP |
Mechanical Properties Of Nickel 200/201 Forged Fittings
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| Nickel 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
Chemical Composition of Nickel 200/201 Forged Fittings
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
|---|---|---|---|---|---|---|---|
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
200/201 Nickel Forged Fittings Equivalent Grades
| STANDARD | UNS | WNR. | JIS | EN |
|---|---|---|---|---|
| Nickel 200 | N02200 | 2.4066 | NW 2200 | Ni 99.2 |
| Nickel 201 | N02201 | 2.4068 | NW 2201 | LC-Ni 99 |
