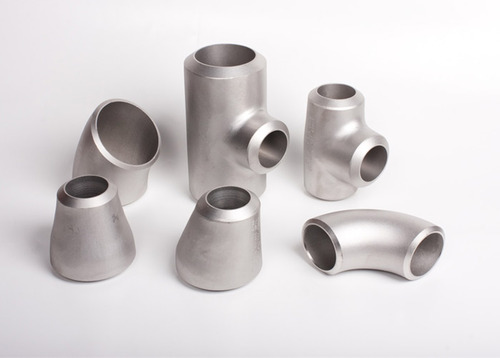

Stainless Steel 347/347H Buttweld Fittings

Stainless Steel 347/347h Pipe Fittings, Austenitic Stainless Steel S34700 Seamless Pipe Fittings, ANSI B16.9 Stainless Steel 347h Buttweld Fittings, Stainless Steel S34709 Pipe Fittings, SS Buttweld Pipe Fittings Manufacturer in Mumbai India.

Rythme Alloys is a leading supplier and exporter of Stainless Steel 347/347H Buttweld Fittings. We are the importers of the above fittings for past years and supply quality products across the globe to our esteemed clients. We are committed to providing products that meet national and international quality standards. We take these products to quality checkups by assuring the best quality products.

Stainless Steel 347/347H Butt Weld Fittings are engineered products that accommodate the latest trend for packed powered performance that can even withstand high temperature and cryogenic temperatures. Grade 347/347H fittings are mostly used across paper and pulp industries due to the capabilities of avoiding air bubbles in pipelines and corrosion resistance against crevice and pitting environments. The chemical composition of 347 and 347H is almost similar except carbon composition, which is up to 0.08% in 347 and up to 0.1% in 347H; apart from that, they have chromium composition for about 20%, nickel up to 13%, and the rest of the elements ranging less than 2% are manganese and silicon like other to stabilize the chemical balance of the material. 347 and 347H Butt Weld Fittings can give resistance against crevice, pitting, and intergranular corrosion due to the small addition of niobium. They also resist oxidation corrosion and provide long-lasting service life.

ASTM A403 Stainless Steel 347 Buttweld Tee Exporter, Stainless Steel 347/347h Pipe Cap, Stainless Steel 347/347h Buttweld Pipe Elbow, Stainless Steel Reducer, Stainless Steel 347 Buttweld Cross, Stainless Steel 347h Buttweld Fittings Supplier in Mumbai India

Specification of Stainless Steel 347/347h Buttweld Pipe Fittings


Specifications

ASTM A403 / ASME SA403

StandardASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size

1/2” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)

ThicknessSch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Bending RadiusR=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
TypeSeamless / Welded / Fabricated
Items

Seamless & Welded Pipe Fittings, 45 Deg & 90 Deg Butt weld Elbow, Pipe Tee, Cross, Reducer, Pipe End Cap, Swage Nipple etc.

Grade

SS 316, 316L, 316H, 316Ti

Mechanical properties of Stainless Steel 347/347h Buttweld Pipe Fittings

GradeTensile Strength ksi (MPa) minYield Strength 0.2% ksi offset ksi (MPa) minElongation (% in 50mm) minHardness (Brinell) MAXHardness (Rockwell B) MAX
347/347H75
(515)
30
(205)
4020195

Chemical Composition of Stainless Steel 347/347h Buttweld Pipe Fittings

ElementCCrMnNiPSSiCb/Ta
SS 3470.08 maxmin: 17.0
max: 20.0
2.0 maxmin: 9.0
max: 13.0
0.04 max0.30
max
0.75
max
min:10x C
max: 1.0
SS 347Hmin: 0.04
max: 0.10
min: 17.0
max: 20.0
2.0 maxmin: 9.0
max: 13.0
0.03 max0.30
max
0.75
max
min:10x C
max: 1.0

Equivalent Grades of Stainless Steel 347/347h Buttweld Pipe Fittings

STANDARDUNSWNR.ENJISGOST
SS 347S347001.4550X6CrNiNb18-10SUS 34708Ch18N12B
SS 347HS347091.4961X6CrNiNb18-12SUS 347H
