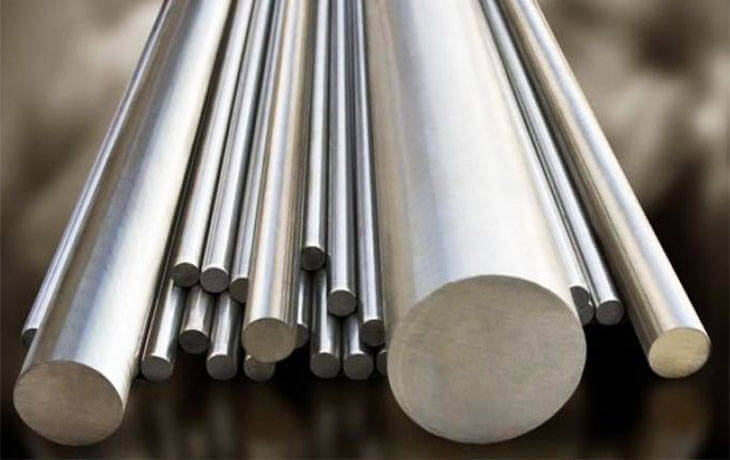

Stainless Steel 316 Round Bar
Stainless Steel 316/316L/316Ti Round Bars manufacturer in India, AISI 316 Bar, Exporter of Stainless Steel 316 Round Bars & UNS S31600 Round Rods, SS 316L Forged Bar, Steel 316 Hex Bar, 316Ti SS Forged Bars
Rythme Alloys is a prominent supplier and exporter of Stainless Steel 316 Round Bar. We have been producing these products for many years and have gained decades of working experience and control management that has enhanced the production of these Bars. We make and produce the following effects based on national and international quality standards and norms only, and mostly get appreciated from our esteemed clients.
Stainless Steel 316 Round Bar has good corrosion resistance to atmospheric corrosion. The Stainless Steel 316Ti Threaded bar has the best corrosion resistance to creep resistance. Stainless Steel 316 Hexagonal bars possess high strength, longer durability, and the best welding properties. Stainless Steel 316Ti Square bar possesses more toughness and the best machining properties. The Stainless Steel alloy 316 round bar consists of Ferrum content of up to 54.7%, nickel content of up to 21%, chromium content of up to 26%, and molybdenum content of up to 2%. Stainless steel 316L Round Bars are mostly used for architecture work and construction work. Stainless steel 316 Hexagonal Bars are usually used for seawater equipment. Stainless Steel 316Ti Hex Bars are often used for chemical equipment and pharmaceutical equipment.
Supplier and Exporter of SS 316S Round Bars, SS 316L Rods, ASTM A276 Stainless Steel 316L Bright Bars, Stainless Steel 316Ti Hexagonal Bar
Specification Of Stainless Steel 316 Round Bar
Grade | SS 316/316L/316Ti |
Specification | EN, DIN, JIS, ASTM, BS, ASME, AISI, IS |
Standard | ASTM A276/ASME SA276, ASTM A479/ASME SA479 & ASTM A164/ASME SA164 |
Round Bars | Outside Diameter in the range of 4mm to 500mm above as per the customer requirement. |
Bright Bars | Outside Diameter in the range of 4mm to 500 mm above as per the customer requirement. |
Hex Bars | 18mm – 57mm (11/16″ to 2-3/4″) above as per the requirement. |
Square Bars | 18mm – 47mm (11/16″ to 1-3/4″) above as per the requirement. |
Flat Bars | 1/2” to 10” in thickness range of 2mm to 150mm |
Length | 1 to 6 Meters, Custom Cut Lengths |
Finish | Black, Bright. Peeled and Polished, Solution annealed. |
Technique | Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
Mechanical Properties Of SS 316Ti Rods
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
316Ti | 515 | 205 | 35 | 75 | 205 |
Stainless Steel 316 Round Bar Chemical Composition
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
---|---|---|---|---|---|---|---|---|---|
316 | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | min: 16.0 max: 18.0 | min: 2.0 max: 3.0 | min: 10.0 max: 14.0 | 0.10 max |
316L | 0.03 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | min: 16.0 max: 18.0 | min: 2.0 max: 3.0 | min: 10.0 max: 14.0 | 0.10 max |
316TI | – | – | – | – | – | 16.0 | 2.00 | 10.0 | – |
0.08 | 2 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.1 |
Equivalent Grade Of 316Ti SS Square Bar
Grade | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
BS | En | No | AFNOR | ||||
316Ti | S31635 | 320S31 | X6CrNiMoTi17-12-2 | 1.4571 | Z6CNDT17‐12 | 08Ch17N13M2T | SUS 316Ti |
